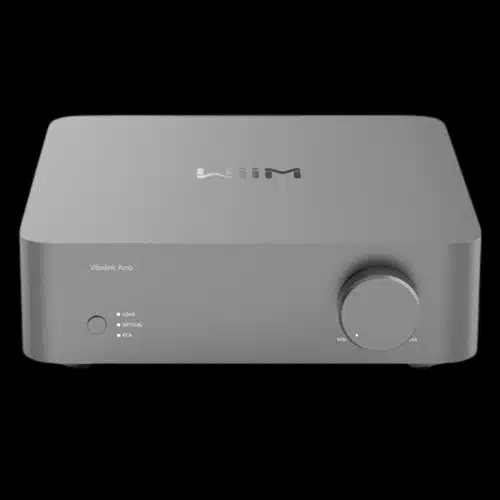

WiiM Vibelink Amp Integrated Amplifier

Description

Compact Form. Big Sound.

The WiiM Vibelink Amp is WiiM’s first product built purely for amplification. It delivers 100W per channel (8 Ω) via Class-D amplification. It features a high-end ESS ES9039Q2M DAC, all in a sleek, stackable design ideal for pairing with WiiM streamers or other digital sources.

Designed for simplicity and performance, Vibelink Amp removes unnecessary features like onboard streaming or subwoofer output, focusing on pure sonic excellence and minimalism.

🔊 Key Features

• 100W × 2 (8Ω) stereo Class‑D amplifier for dynamic, distortion‑free playback

• ESS ES9039Q2M DAC supporting up to 24‑bit/192kHz hi-res sources

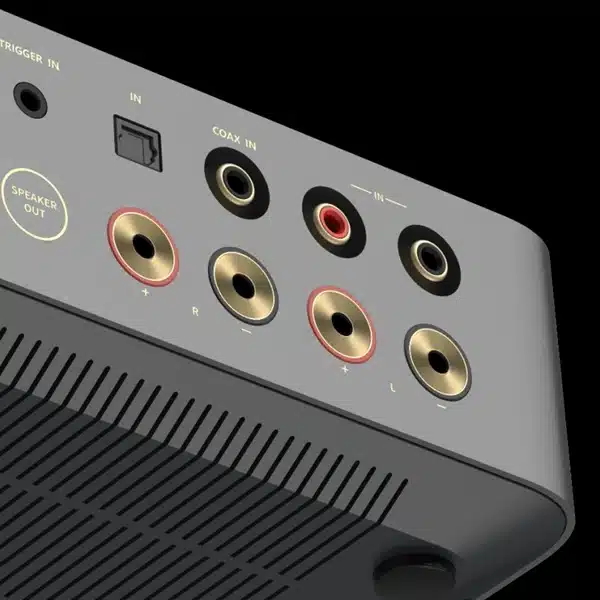

• Analog (RCA) and Digital (Optical, Coaxial) inputs, optimised signal paths for pure audio

• Post‑Filter Feedback (PFFB) and multiple TI op‑amps for ultra-low distortion and noise

• Passive thermal design with copper heat pipe, heatsink and PID control for silent, efficient operation

• Compact chassis, visually matching WiiM Ultra and ideal for stackable setups

🎧 Use Case & Compatibility

Intended to pair with WiiM streamers, such as Mini, Pro, Pro Plus, or Ultra. Connect via RCA, optical or coaxial to output high-fidelity streaming audio through Vibelink Amp. Volume control handled via your WiiM streamer’s remote or app, with Vibelink providing precise analog volume adjustment. Perfect for building minimalist audiophile systems.

📦 What’s in the Box

• WiiM Vibelink Amp

• Power Cable

• RCA & Optical Cables

• Banana Plug Adapters

• Quick Start Guide

🔧 Technical Specifications
