Description
Smart Streaming in a Tiny Package
The WiiM Mini is a compact, affordable, and high-fidelity music streamer and preamp designed to breathe new life into legacy audio gear. Capable of bit-perfect, gapless playback up to 24-bit/192 kHz, it offers seamless streaming from Spotify, TIDAL, Amazon Music, Deezer, and more, while also supporting local playback from NAS or mobile libraries via UPnP/DLNA.
🔊 Key Features
-
Hi‑Res Lossless Audio – Audio output up to 24‑bit/192 kHz with excellent dynamic range and ultra-low distortion.
-
Streaming Platforms Supported – AirPlay 2, Spotify Connect, Amazon Music Cast (Ultra HD), TIDAL Connect, DLNA/UPnP, and more.
-
Voice Control – Works with Alexa and Siri/HomeKit, including multi-room groups via compatible devices.
-

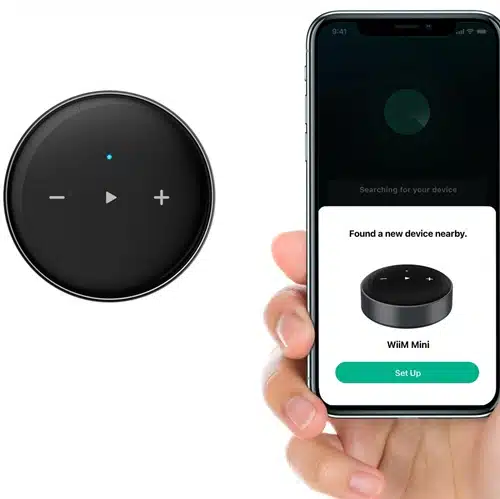

App & Service Control – Supports Spotify/TIDAL Connect and full control via the WiiM Home app.
-
10‑Band Equaliser + 24 EQ Presets – Plus Adaptive EQ that tunes automatically based on content type and playback source.
-
Multi-Room Sync – Extremely low latency (<150 µs), enabling seamless synchronisation across rooms.
📥 Connectivity & Controls
-
Inputs & Outputs:
-
1× 3.5 mm Aux‑in,
-
1× 3.5 mm Aux‑out,
-
1× Optical SPDIF output (digital).
-
-
Wireless: Wi‑Fi dual‑band (2.4 GHz/5 GHz), Bluetooth 5.2 (supports SBC, AAC).
-

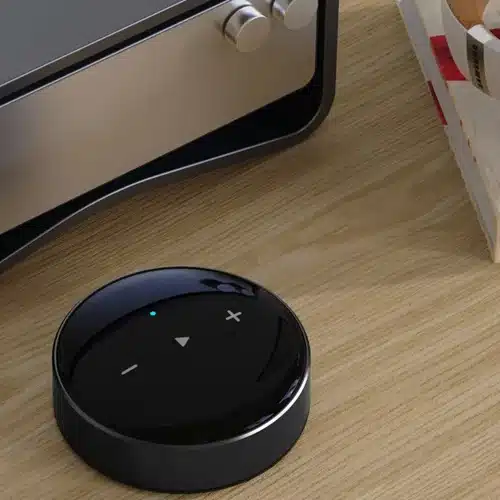

Controls: Capacitive touch buttons (volume up/down, play/pause), and status LED.
🎛 Technical Specifications
| Feature | Specification |
|---|---|
| Audio Output | Bit‑perfect, up to 24‑bit/192 kHz |
| Signal-to-Noise Ratio | Up to 106 dB (AUX/SPDIF output) |
| THD+N Ratio | ≤ 0.009% for analog, ≤ 0.005% for digital |
| Connectivity | Wi‑Fi dual-band, Bluetooth 5.2 |
| Inputs/Outputs | Aux-in, Aux-out, Optical SPDIF out |
| Streaming Protocols | AirPlay 2, DLNA/UPnP, Spotify Connect, TIDAL, Amazon Cast |
| Voice Control | Alexa, Siri/HomeKit |
| Controls | Touch panel (play/pause, +/−), LED indicator |
| Dimensions | ~69 × 69 × 24 mm (2.7 × 2.7 × 0.9 in) |
| Weight | ~40 g (1.4 oz) |
| Power Input | USB‑C 5 V/1 A |
🎯 Typical Use Cases & Compatibility
-

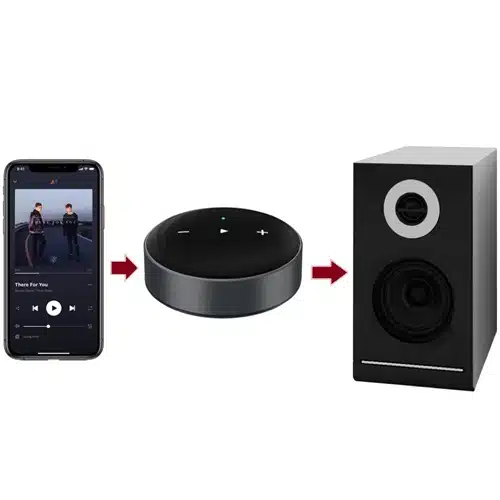

Legacy System Upgrade: Makes traditional stereo setups smart with streaming and voice control.
-
Multi-Room & Stereo Pairing: Sync multiple Minis or mix with AirPlay 2/Alexa devices for volume‑perfect multi-room playback or stereo mode.
-
Broad Streaming Support: Works via major services and NAS/cloud sources using Spotify/Tidal Connect or Apple AirPlay 2.
-
Voice Interaction: Control music hands-free via Alexa or Siri, without needing the phone nearby.
💬 Real-World Insights
Some users report a transient pop when streaming across changing resolutions (e.g. Amazon Music HD) when using optical output to certain DACs. This is due to sample‑rate switching in the DAC relay; the Pro Plus can help mitigate this with integrated resampling features.
Forum comparison: the Mini lacks Ethernet and room correction, unlike Pro/Pro Plus models—but still offers excellent performance for its compact size.
